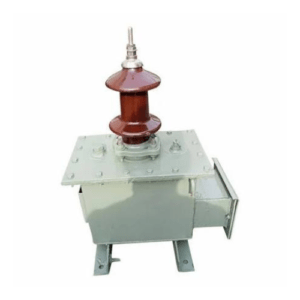

11 kV Outdoor Oil Cooled PT
SERVICES
Product Image Gallery
SERVICES
Specifications
|
Parameter
|
Value
|
|---|---|
|
Voltage Class
|
11 kV (12 kV Highest System Voltage)
|
|
Accuracy Class
|
0.2, 0.5 (Metering); 3P, 6P (Protection)
|
|
Frequency
|
50 Hz (Standard), 60 Hz (Optional)
|
|
Burden
|
25 VA, 50 VA, 100 VA, 200 VA (as required)
|
|
Standards
|
IEC 61869-3, IS 16227-3 (formerly IS 3156), IEEE C57.13 (Optional)
|
SERVICES
Features
WHY CHOOSE US
- High Accuracy: Delivers precise voltage measurement for metering and protection applications.
- Oil Cooled Insulation: High-grade insulating oil provides excellent dielectric strength, efficient cooling, and extended equipment life.
- Weatherproof Construction: Designed to withstand harsh outdoor conditions, including rain, dust, humidity, and UV exposure.
- Robust Porcelain Housing: Designed to withstand mechanical stress and ensure long-term operational reliability.
- Low Maintenance: Sealed construction minimizes maintenance requirements and ensures dependable operation.
- Excellent Thermal Stability: Maintains consistent performance under varying electrical loads and ambient temperatures.
- Compact Design: Space-saving construction enables easy installation in indoor switchgear and control panels.
- Reliable Performance: Ensures stable voltage transformation for continuous monitoring and protection.
- Standards Compliance: Designed and tested in accordance with IS / IEC standards for quality, safety, and reliability.
SERVICES
Applications
WHY CHOOSE US
- Substations: Provides accurate voltage measurement and protection in power transmission and distribution substations.
- Industries: Used in industrial power systems for voltage monitoring, control, and protection of electrical equipment.
- Metering Panels: Supplies precise voltage signals for energy metering, billing, load monitoring, and power quality analysis.
- Protection Systems: Provides accurate voltage input to protective relays for fault detection, system monitoring, and network protection.
- Utilities: Widely used in utility power distribution networks for dependable voltage measurement, monitoring, and safe power delivery.
