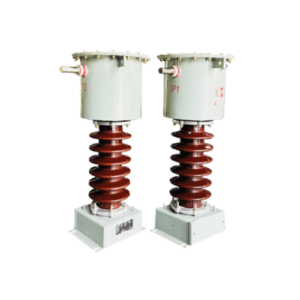

33 kV Outdoor Oil Cooled CT
SERVICES
Product Image Gallery
SERVICES
Specifications
|
Parameter
|
Value
|
|---|---|
|
Voltage Class
|
36 kV (Suitable for 33 kV System)
|
|
Accuracy Class
|
0.2, 0.2S, 0.5, 0.5S (Metering); 5P10, 5P20, 10P10, PX/PS (Protection)
|
|
Frequency
|
50 Hz (Standard), 60 Hz (Optional)
|
|
Burden
|
10 VA, 15 VA, 30 VA (or as specified)
|
|
Standards
|
IEC 61869-2, IS 16227-2 (formerly IS 2705), IEEE C57.13 (Optional)
|
SERVICES
Features
WHY CHOOSE US
- High Accuracy: Ensures precise current measurement for metering and protection applications.
- Oil Cooled Design: Mineral oil insulation provides excellent cooling, dielectric strength, and reliable long-term performance.
- Weather Resistant Construction: Designed to withstand harsh outdoor environments, including rain, dust, UV exposure, and humidity.
- High Dielectric Strength: Offers superior insulation performance for safe operation in high-voltage systems.
- Low Maintenance: Robust construction minimizes maintenance requirements and ensures dependable operation.
- High Thermal Stability: Maintains consistent performance under continuous load and varying ambient temperatures.
- High Short-Circuit Withstand Capability: Engineered to endure high fault currents and mechanical stresses.
- Long Service Life: Manufactured with premium materials for extended operational life and reliability.
- Reliable Outdoor Performance: Delivers stable operation in substations, utility networks, and industrial installations.
- Standards Compliance: Designed and tested in accordance with IS / IEC standards for safety and quality.
SERVICES
Applications
WHY CHOOSE US
- Substations: Provides accurate current measurement and protection for transmission and distribution substations.
- Industries: Used in industrial power systems for monitoring, control, and protection of transformers, feeders, and high-voltage equipment.
- Metering Panels: Provides precise current sensing for energy metering, billing, load monitoring, and power quality analysis.
- Protection Systems: Supplies accurate current signals to protective relays for fault detection, overload protection, and system reliability.
- Utilities: Widely used in utility power networks for dependable current measurement, system monitoring, and efficient power distribution.
