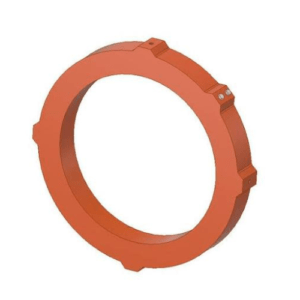

Bus Duct CT
SERVICES
Product Image Gallery
SERVICES
Specifications
|
Parameter
|
Value
|
|---|---|
|
Voltage Class
|
Up to 1.1 kV, 3.3 kV, 6.6 kV, 11 kV, 22 kV, 33 kV (as per application)
|
|
Accuracy Class
|
0.2, 0.2S, 0.5, 0.5S (Metering); 5P10, 5P20, 10P10, PX/PS (Protection)
|
|
Frequency
|
50 Hz (Standard), 60 Hz (Optional)
|
|
Burden
|
2.5 VA, 5 VA, 10 VA, 15 VA, 30 VA (or as required)
|
|
Standards
|
IEC 61869-2, IS 16227-2 (formerly IS 2705), IEEE C57.13 (if specified)
|
SERVICES
Features
WHY CHOOSE US
- High Accuracy: Ensures precise current measurement for metering and protection applications.
- Bus Duct Compatible Design: Specifically engineered for seamless installation within bus duct and busbar trunking systems.
- Epoxy Resin Insulation: High-quality resin casting provides excellent dielectric strength, insulation, and mechanical durability.
- Compact Construction: Space-saving design allows easy integration into compact bus duct assemblies.
- Low Maintenance: Maintenance-free construction minimizes downtime and operating costs.
- High Thermal Stability: Maintains reliable performance under continuous load and varying temperature conditions.
- High Short-Circuit Withstand Capability: Designed to endure high fault currents and mechanical stresses.
- Long Service Life: Manufactured using premium-grade materials for dependable, long-lasting operation.
- Reliable Performance: Delivers stable and accurate operation in industrial, commercial, and utility power systems.
- Standards Compliance: Designed and tested in accordance with IS / IEC standards to ensure quality, safety, and reliability.
SERVICES
Applications
WHY CHOOSE US
- Substations: Used for current monitoring and protection in power transmission and distribution substations.
- Industries: Ideal for monitoring and protecting electrical distribution systems in manufacturing facilities and process industries.
- Metering Panels: Provides accurate current sensing for energy metering, billing, load monitoring, and power quality analysis.
- Protection Systems: Supplies accurate current signals to protective relays for fault detection and system reliability.
- Utilities: Widely used in utility power networks for dependable current measurement, system monitoring, and safe power distribution.
