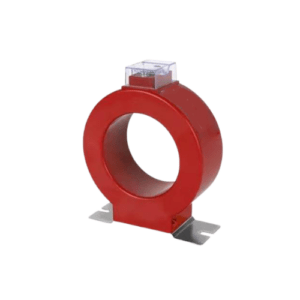

Indoor Ring Type CT
SERVICES
Product Image Gallery
SERVICES
Specifications
|
Parameter
|
Value
|
|---|---|
|
Voltage Class
|
11 kV / 22 kV / 33 kV
|
|
Accuracy Class
|
0.2, 0.2S, 0.5, 0.5S, 1.0, 5P10, 10P10
|
|
Frequency
|
50 Hz
|
|
Burden
|
5 VA, 10 VA, 15 VA, 30 VA (or as per customer requirement)
|
|
Standards
|
IS 16227 (IEC 61869-2) / BIS
|
SERVICES
Features
WHY CHOOSE US
- High Accuracy: Delivers precise current measurement for metering and protection applications.
- Ring Type Design: Window-type construction enables easy installation around existing busbars or cables without primary winding connections.
- Epoxy Resin Insulation: High-quality resin casting provides excellent electrical insulation and mechanical strength.
- Compact Construction: Space-saving design is ideal for switchgear, RMUs, and compact electrical panels.
- Low Maintenance: Maintenance-free construction ensures reliable performance with minimal servicing.
- High Thermal Stability: Maintains consistent accuracy under varying load and temperature conditions.
- High Short-Circuit Strength: Designed to withstand high fault currents and dynamic mechanical stresses.
- Long Service Life: Built with high-grade materials for dependable, long-lasting operation.
- Standards Compliance: Manufactured and tested in accordance with IS / IEC standards for quality and safety.
SERVICES
Applications
WHY CHOOSE US
- Substations: Provides accurate current measurement and protection in transmission and distribution substations.
- Switchgear & RMUs: Ideal for medium-voltage switchgear and Ring Main Units for metering and protection functions.
- Industries: Used in industrial electrical systems to monitor and protect motors, feeders, and power distribution circuits.
- Metering Panels: Ensures precise current sensing for energy metering, monitoring, and billing applications.
- Protection Systems: Supplies accurate current signals to protective relays for fault detection and system protection.
- Utilities: Widely used in utility power distribution networks for reliable current measurement and operational safety.
