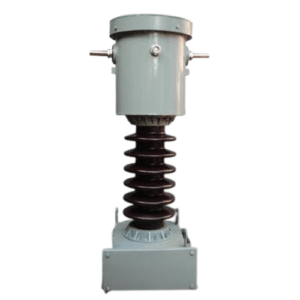

Live Tank Type CT
SERVICES
Product Image Gallery
SERVICES
Specifications
|
Parameter
|
Value
|
|---|---|
|
Voltage Class
|
33 kV, 66 kV, 110 kV, 132 kV, 220 kV, 400 kV (or as required)
|
|
Accuracy Class
|
0.2, 0.2S, 0.5, 0.5S (Metering); 5P10, 5P20, 10P10, PX/PS (Protection)
|
|
Frequency
|
50 Hz (Standard), 60 Hz (Optional)
|
|
Burden
|
5 VA, 10 VA, 15 VA, 30 VA, 60 VA (or as specified)
|
|
Standards
|
IEC 61869-2, IS 16227-2, IEEE C57.13 (Optional)
|
SERVICES
Features
WHY CHOOSE US
- High Accuracy: Delivers precise current measurement for metering and protection applications.
- Live Tank Construction: Designed with the primary conductor at high potential, making it ideal for high-voltage transmission systems.
- Superior Insulation: High-quality insulation system ensures excellent dielectric performance and operational safety.
- Weather Resistant: Built to withstand harsh outdoor environments, including rain, dust, UV exposure, and temperature variations.
- Robust Construction: Heavy-duty design offers exceptional mechanical strength and long-term reliability.
- Long Service Life: Manufactured using premium materials for reliable performance over an extended lifespan.
- High Thermal & Short-Circuit Strength: Withstands high thermal loads and fault currents under demanding operating conditions.
- Standards Compliance: Designed and tested in accordance with IS / IEC standards for safety and quality.
SERVICES
Applications
WHY CHOOSE US
- Substations: Used for accurate current measurement and protection in high-voltage transmission and distribution substations.
- Industries: Suitable for high-voltage industrial power systems, ensuring reliable monitoring and protection of critical electrical equipment.
- Metering Panels: Provides precise current sensing for energy metering, billing, load monitoring, and power quality analysis.
- Protection Systems: Supplies accurate current signals to protective relays for fault detection, system monitoring, and equipment protection.
- Utilities: Widely deployed in utility transmission and distribution networks for dependable current measurement, grid protection, and efficient power management.
